Fusion
2000 Commercial Real time MPEG-1
Video Encoder |
|

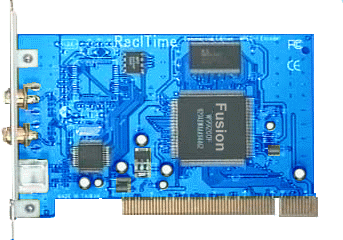

The Fusion2000 Real-time
MPEG-1 encoder is a high quality and low cost hardware MPEG-1
accelerator. The board can capture SIF and QSIF resolution video
and real time compress to MPEG video layer streams. Windows based
operating software enables user to capture video and the audio
signal from sound card combine into system layer streams in real
time. |
|
With excellent hardware
performance no matter what kinds of Pentiums computer, you just
need to click the control button under Win98 environment utility.
It’s simply to make your video into VCD disc. Who use the card?
We highly recommend for general commercial uses. |
|
The
Product Specification |
|
|
 |
PCI BUS Hardware
ISO-1172-2 MPEG-1 Video encoding card |
|
|
|
|
*SIF/QSIF resolution
support. |
|
|
|
|
Composite and 1 S-VHS
video input, Support NTSC/PAL/SECAM video worldwide standard. |
|
|
|
|
High throughput and high
compression output |
|
|
|
|
Bit rate from 64kbps up
to 9Mbps |
|
|
|
|
Live Video snapshot
resolution up to 720x576 |
|
|
|
|
Run utility at Windows 95/98 |
|
|
Video
Specifications |
|
|
Resolution
|
|
|
|
 | SIF:352x240 at 30fps(NTSC) |
|
|
|
|
| 352x288
at 25fps(PAL/SECAM |
|
|
|
|
| QSIF:176x120
at 30fps(NTSC) |
|
|
|
|
| 176x144
at 25fps(PAL/SECAM) |
|
|
|
Real-Time
Controls Tint (Hue),
Brightness, Contrast and Saturation |
|
Video
bit rate 64k to
9Mb/sec, 1.15Mb/sec for Video CD |
|
Video Input |
|
2
Composite in & 1 S-video In |
|
Output
MPEG File, software playback to graphics display cards |
|
Audio Specifications |
|
Audio Bitrate 224Kb/sec
for Video CD |
|
File Generation |
|
Video MPEG, Audio MPEG,
A/V Multiplexed MPEG file |
|
Capture |
|
Resolution: Full
screen,SIF,QSIF |
|
File
Formats BMP,JPEG |
|
Application |
|
It
is easy to make a VCD instantly; real time converts the video to
VCD file, Simple and fast. (The board especially fit for the
people without patient at off line video editing) |
|
System
requirement |
|
|
| Intel Pentium 133MHz or
faster CPU |
|
|
|
|
| One PCI 2.1 compatible
slot |
|
|
|
|
| 16MB of system memory |
|
|
|
|
| 16bit sound card |
|
|
|
|
| CD-ROM drive or DVD-ROM
drive |
|
|
|
|
| Microsoft Windows 95/98 |
|
|
|
|
| PCI/AGP bus Graphics card |
|
|
|
|
| Microsoft DriectX6 or
higher version |
|
