Fusion 2000 Deluxe
Copyright
© 1999 Sigma Labs Inc. All rights
reserved. Teppro and Teppro Logo are registered trademarks of TEPPRO
INDUSTRIES LIMITED
Information in this document is subject to change without notice.
All brands and product names mentioned are trademarks or registered trademarks
of their respective companies.
|
|
|
Model Names |
Fusion 2000 Deluxe |
||||||||
|
Bus Interface |
32-bit PCI Bus Mastering (PCI Local Bus 2.1) |
||||||||
|
Video Bit rate |
6144kbps |
||||||||
|
System requirement |
PC with PCI Local Bus 2.1 compliant PCI slot (MMX Pentium 400 or faster) processor and 64 MB of Ram recommended) Windows 98, Windows98SE |
||||||||
|
Package includes |

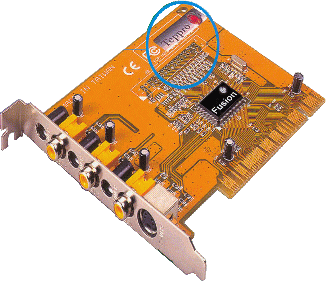

PCI-Fusion PCI Board Fusion 2000 Installation Disc |
||||||||
|
Connectors |
Video Input 2 composite in & 1 S-video in |
||||||||
|
Resolution |
|||||||||
| SIF:352x240 at 30fps(NTSC) | |||||||||
| 352x288 at 25fps(PAL/SECAM | |||||||||
| QSIF:176x120 at 30fps(NTSC) | |||||||||
| 176x144 at 25fps(PAL/SECAM) | |||||||||
|
Features |
Selectable I/B/P frame, I/P frame & I-frame only recording option. |
||||||||
|
|
Provide VCD (fixed bit rate), fixed quality & user-defined recording profiles. |
||||||||
|
|
|
||||||||
|
|
|
||||||||
|
|
|
||||||||
|
|
|||||||||
|
|
Support Plug and Play Specification |
||||||||
|
|
Compliant to Last PCI Specification PCI 2.2 |
||||||||
